Welded Cement Silo
Welded Cement Silo,Welded Cement Silo For Sale,Steel Cement Silos,Cement Silos,Cement Silo

Applications of  Welded Cement Silo

Cement silo manufacturer

Cement silo manufacturer

Oriental machinery Welded Cement Silo is suitable for bulk cement and dry fly ash,featured by rain and dampness resistand and easy to use etc.Cement silo is cylinder and supporting the superior parts has dust removing device to avoid leakage of dust,and the inferior part is equipped with each breaker to avoid power caking and make discharging smooth.

Manufactured Technology of  Welded Cement Silo

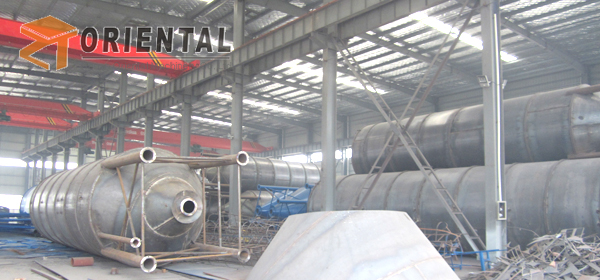

The parts of the Welded Cement Silo are manufactured by special laser cutting and drilling technologies and they are implemented special surface cleaning procedure. The parts of the cement silos also are manufactured in sensitive production facilities with special equipments and they are painted with prime coating and final coating. The parts which are hung on automatic conveyor line , are painted in special painting cabinets. Then the parts of the cement silos are packed specially suitable for transportation.

Technical Parameters of  Welded Cement Silo

Model TankerDiameter TankerHeight Tanker TotalHeight Matchedmixer Matchedscrew conveyor
30Ton 2.6m 4.8m 12m JDC350 LSY163
50Ton 3m 5.4m 12m JS500 LSY180
80Ton 3m 9m 15.6m JS750 LSY180
100Ton 3m 11.4 18m JS1000 LSY230
150Ton 3m 23.5m 29m JS1000 LSY230
200Ton 4.5m 18.6m 25.2m JS1500 LSY230
300Ton 4.5m 24.6m 29.5m JS2000 LSY230


Storage Silo Cement sand fly ash slag corn wheat soybean
